Vessel for testing hob elements and hotplates
Vessel for testing hob elements and hotplates T5-32X
COMPLIANCE

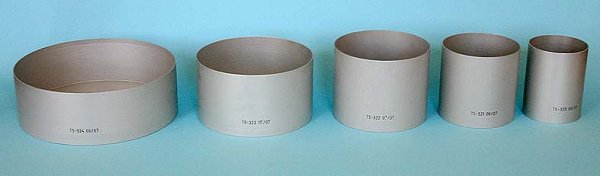

5‑32X VESSEL FOR TESTING HOB ELEMENTS AND HOTPLATES are made of unpolished commercial quality aluminium have a flat bottom, are cylindrical shape without handles or protrusions. Our standard diameters are 110, 145, 180, 220, and 300 mm. Other dimensions are also available on special request. Concavity of the base of the vessel is not more that 0,05 mm. The base of the vessel is not convex. Wall thickness is 2 ± 0,5 mm. Each vessel is engraved with catalogue number and serial number that enable its certification and traceability.
DESCRIPTION
5‑32X VESSEL FOR TESTING HOB ELEMENTS AND HOTPLATES are made of unpolished commercial quality aluminium have a flat bottom, are cylindrical shape without handles or protrusions. Our standard diameters are 110, 145, 180, 220, and 300 mm. Other dimensions are also available on special request. Concavity of the base of the vessel is not more that 0,05 mm. The base of the vessel is not convex. Wall thickness is 2 ± 0,5 mm. Each vessel is engraved with catalogue number and serial number that enable its certification and traceability.
CAT.NO. | ITEM | VESSEL HEIGHT | BOTTOM THICKNESS |
---|---|---|---|
T5-320 | Vessel for testing hob elements and hotplates dia.110 | 140 | 8 |
T5-321 | Vessel for testing hob elements and hotplates dia.145 | 140 | 8 |
T5-322 | Vessel for testing hob elements and hotplates dia.180 | 140 | 9 |
T5-323 | Vessel for testing hob elements and hotplates dia.220 | 120 | 10 |
T5-324 | Vessel for testing hob elements and hotplates dia.300 | 120 | 10 |
Vessels can be also delivered with lids for holding thermocouples. Lids are made of anodized aluminum, each matching to the vessel diameter and are equipped with handle. Lids are not included in the price.
CALIBRATION CERTIFICATES
Certificate for dimensions, are available on request, but are not included in the price.
OTHER CONDITIONS
Warranty: 2 years
