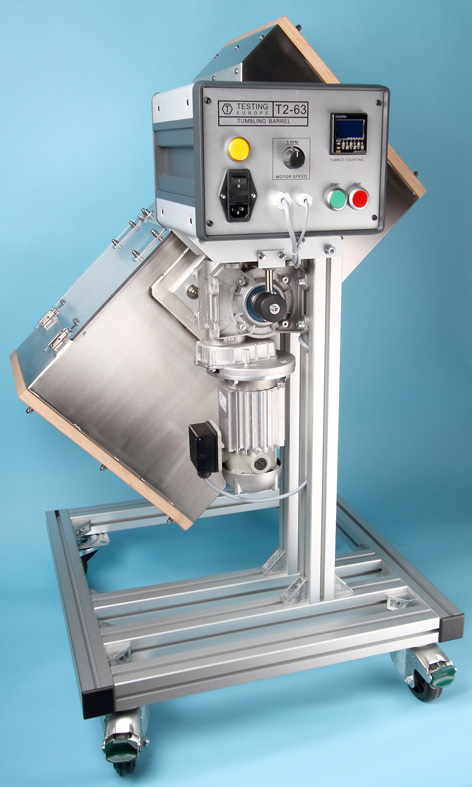

Tumbling barrel h=800 mm T2-67

pdfTumbling barrel h=800 mm T2-67

Inquiry

COMPLIANCE

It is constructed in compliance with IEC 60312 Cl. 7.3.10.

INTRODUCTION

T2-67 TUMBLING BARREL h=800 mm is intended for establishing the resistance of different products and semi-products to mechanical shocks.

MAIN FEATURES

  • Ergonomically designed
  • Moveable on four swivel rollers with breaks
  • Exchangeable barrels
  • Solid anodized aluminum framework
  • Wooden barrel made of blockboard, lacquered
  • Shelf faced with non-grip material
  • Impact base 9 mm nominal thick plywood, impact face birch - replaceable
  • Acrylic – transparent doors on both sides for observation, sample manipulation and impact base exchange.
  • Electromotor drive with reduction gear



Control unit



  • The front plate of anodized aluminum
  • Electromotor controller with current‑protection and feedback regulation
  • Counter that switches the apparatus off after completing a preset number of cycles
  • Motor speed regulation knob



DESIGN

Apparatus is free-standing, the skeleton is made of rectangular anodized aluminum sectional profiles, on 4 swivel rollers, barrel made of 1,5 mm stainless steel.

Landing surface is 20 mm thick plate of Oak or material of equivalent density and stiffness, supported by 5 mm sheet steel.

CONTROL UNIT: solid case, Non-sensitive, scratch-resistant surfaces through powder-coating, side panels, Al extrusion, RAL 7016, Frame, Al die-cast, RAL 7016, Base and cover, AI, 1.5 mm, RAL 9006, with GND/earthing connection, case feet with an anti-slip protection, front plate, and rear panel anodized aluminum 2,5 mm.

Internal and external dimensions in accordance with: IEC 60297-3. Type of protection IP 20 in accordance with IEC 60529, Protective GND/earthing connections in accordance with: IEC 61010, DIN EN 50178 / VDE 0160, DIN EN 60950 / VDE 0805, DIN EN 61010-1 / VDE 0411 part 1, DIN EN 61010-1A2 / VDE 0411 part 1/A1.

DESCRIPTION

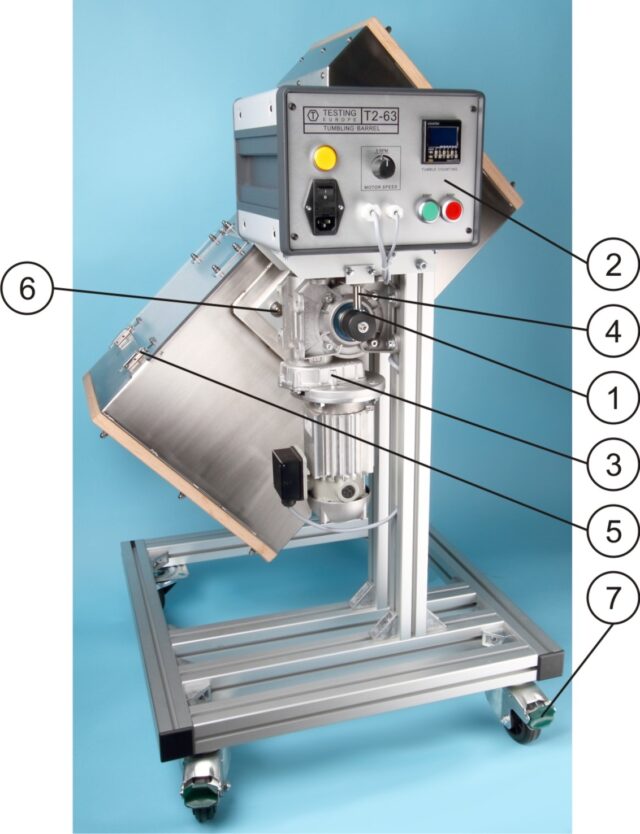

Fig. 1: Tumbling Barrel



1) SENSOR TRIGGER

2) CONTROL UNIT

3) ELECTROMOTOR WITH REDUCTION GEAR

4) INDUCTIVE SENSOR

5) DOOR LATCHES

6) BARREL FASTENING NUTS

7) WHEEL BREAKS

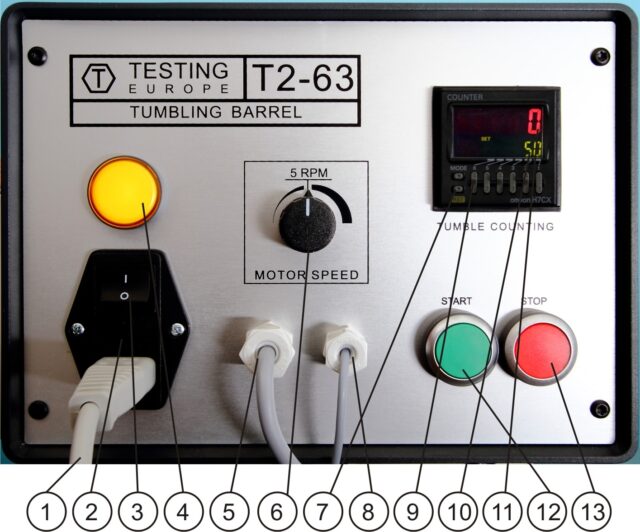

Fig. 2: Front Plate



1) MAINS CABLE

2) MAINS FUSE

3) MAINS SWITCH

4) MAINS INDICATOR

5) MOTOR CABLE CONDUIT ENTRY

6) REVOLVING RATE ADJUSTMENT KNOB

7) COUNTER RESET BUTTON

8) INDUCTIVE SENSOR CONDUIT ENTRY

9) COUNTER PRESET BUTTONS

10) PRESET DISPLAY

11) DISPLAY OF COUNTER

12) START PUSH BUTTON

13) STOP PUSH BUTTON



TECHNICAL SPECIFICATION

Line voltage                          220 V, 50/60 Hz (other optional)



Power consumption            150 VA



Motor                                     BC220.36.1500.95.B5, Bonfiglioli

                                               Voltage: 36VDC

                                               permanent magnets stator

                                               Max. power consumption 95 W

                                               Max. 1500 rpm



Reduction gear                    VFR 49U P63B3, i=135

                                               Transmission factor 1:135

                                               Max. 10 Nm





Regulation of barrel turns  0 – 8 rpm



Regulation                           electronic, with feed back



Counter

                        Supplying voltage    24 V AC

                        Number of digits      6 (0 - 999999)

                        Type of counter        digital, incremental, off switching,

                                                           manual preset, manual reset



Barrel

                        Fall height                 800 mm

                        Inner depth               400 mm

                        Fall base                   sheet steel 5 mm thick, covered with 20 mm thick plate of

                                                           Oak or material of equivalent density and stiffness

                        Sliding surface         Plastic laminated sheet





Dimensions

                        Width                         700 mm

                        Depth                         750 mm

                        Height                        approx 1400 mm



Weight:                                             min. 60 kg



OTHER CONDITIONS

Warranty: 2 years

Support by E-mail: support@testing.si

On line Skype VIDEO support: Testing_support, matejsimonic

We will be glad to help you and to hear any feedback from you.

The equipment described here is subject to redesign without notice. The change will not impair the function of apparatus its characteristics or the price.
