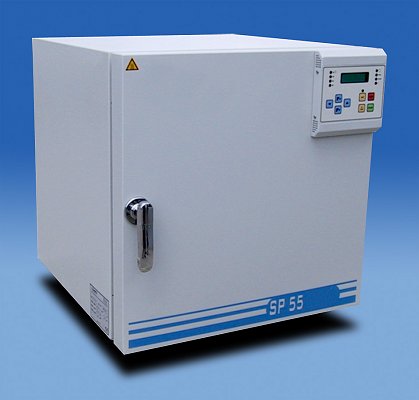

Heating Chambers with forced convection

It is constructed in compliance with IEC 60335-1, IEC 60065, 60950, ,…

Hearing chambers are intended for performing different kind of test where the temperature of must be controlled within certain limits.

Heating chambers were designed with the following goals:

• Safety
• Reliability
• Ease of operation
• Ergonomical design

• Temperature range Tambient +5°C ÷ 300 °C
• Forced convection with fan
• Easy to use microprocessor controller with LED display
• PID temperature controller
• Visual and acoustic alarm in case of over temperature and/or sensor error
• Timer function – one ramp
• Temperature set resolution 0.1 °C
• Temperature display resolution 0.1 °C
• Temperature stability ± 0.1°C
• Double over temperature protection

(over temperature shut-off 5°C above set temperature – microprocessor controlled)

(over temperature shut-off – mechanical )

• Adjustable exhaust
• All stainless steel interior AISI 304 mirror polished
• Powder coated exterior (RAL 7035) – scratch resistant
• Stainless steel shelve
• Lockable door
• RS – 232 communication port
• Program for temperature sensor corrections (easy calibration without any mechanical interferences)

* options – not included in price

• Access port with plug Ø 40 mm left (all other locations specified by user)
• Calibration certificate (1 temperature, 1 point)
• Calibration certificate ( 3 temperatures, 10 points)
• All interior made of AISI 316
• All exterior and interior made of AISI 304
• Additional exhaust fan unite
• Stainless steel AISI 304 shelve
• Other supplying voltage

Table top apparatus:

Solid construction, Non-sensitive, scratch-resistant surfaces through powder-coating, galvanized steel sheets, feet with anti-slip protection.

Internal chamber: Stainless steel AISI 304, mirror polished.

Warranty: 2 years

Support by E-mail: support@testing.si

Online Microsoft Teams VIDEO support: mail@testing.si

We will be glad to help you solve your problems and to hear any feedback from you.

The equipment described here is subject to redesign without notice. The change will not impair the function of apparatus its characteristics or the price.
