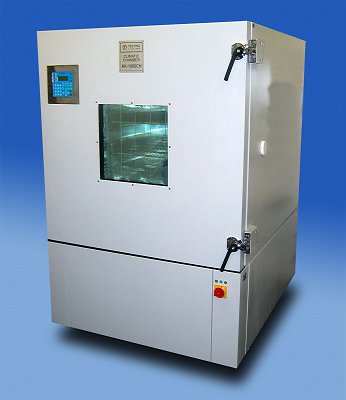

Climatic Chambers KKXX

pdfClimatic Chambers KKXX

Inquiry

COMPLIANCE

It is constructed in compliance with IEC 60335-1, IEC 60065, 60950, ,...

INTRODUCTION

Climatic chambers are intended for performing different kind of test where the temperature and humidity of sample environment must be controlled within certain limits.

Our climatic chambers were designed with the following goals:

  • Safety
  • Reliability
  • Ease of operation
  • Ergonomical design

MAIN FEATURES

  • Temperature range Tambient +5°C ÷ 95 °C
  • Forced convection with fan
  • Easy to use microprocessor controller with LED display – fully programmable
  • Innovative heating technology to ensure high temperature stability and temperature uniformity
  • 10 adjustable programs each with up to 10 temperature/time ramps/set points
  • Adjustable temperature and humidity tolerance to start time count down
  • PID temperature controller
  • Dew-point principle humidity control
  • Visual and acoustic alarm in case of overheating and/or sensor error
  • Timer function – one ramp
  • Temperature set resolution 0.1 °C
  • Temperature display resolution 0.1 °C
  • Temperature stability ± 0.1 to 0.2°C (depending on the chamber size)
  • Relative humidity 15-95%
  • Relative humidity stability lower than ± 3%
  • Double over temperature protection

(over temperature shut-off 5°C above set temperature – microprocessor controlled)

(over temperature shut-off – mechanical )

  • Adjustable  exhaust
  • All stainless steel interior AISI 304 mirror polished
  • Powder coated exterior (RAL 7035) – scratch resistant
  • Stainless steel shelve
  • Lockable door
  • RS – 232 communication port
  • Program for temperature sensor corrections (easy calibration without any mechanical interferences)



STANDARD MODELS

Type

Volume

Internal DIMS

(WxHxD) mm

External DIMS

(WxHxD) mm

Power consumption

KK105

105 L

490 x 500 x 430

725 x 1500 x 845

230V~50/60 Hz 2,5 kW

KK190

190 L

600 x 615 x 515

900 x 1680 x 930

230V~50/60 Hz

KK265

252 L

600 x 765 x 550

835 x 1745 x 1040

230V~50/60 Hz 2,5 kW

KK500

495 L

680 x 1400 x 520

1500 x 1905 x 715

3x400V~50/60 Hz 3,5 kW

KK1000

1000 L

1000 x 1000 x 1000

1270 x 1925 x 1470

3x400V~50/60 Hz 3,0 kW

KK4075

4075 L

1420 x 1920 x 1495

2460 x 2390 x 1755

3x400V~50/60 Hz 6,0 kW

ACCESSORIES

*options - not included in price

  • Extended temperature range versions (min = -75°C max =180°C)
  • Access port with plug Ø 40 mm left (all other locations specified by user)
  • Calibration certificate (1 temperature, 1 point)
  • Calibration certificate ( 3 temperatures, 10 points)
  • All interior made of AISI 316
  • All exterior and interior made of AISI 304
  • Additional exhaust fan unite
  • Stainless steel AISI 304 shelve
  • Other supplying voltage
  • Observation window
  • Printer with adjustable print-out intervals



DESIGN

Solid construction, Non-sensitive, scratch-resistant surfaces through powder-coating, galvanized steel sheets, feet with anti-slip protection,

Internal chamber: Stainless steel AISI 304, mirror polished.
