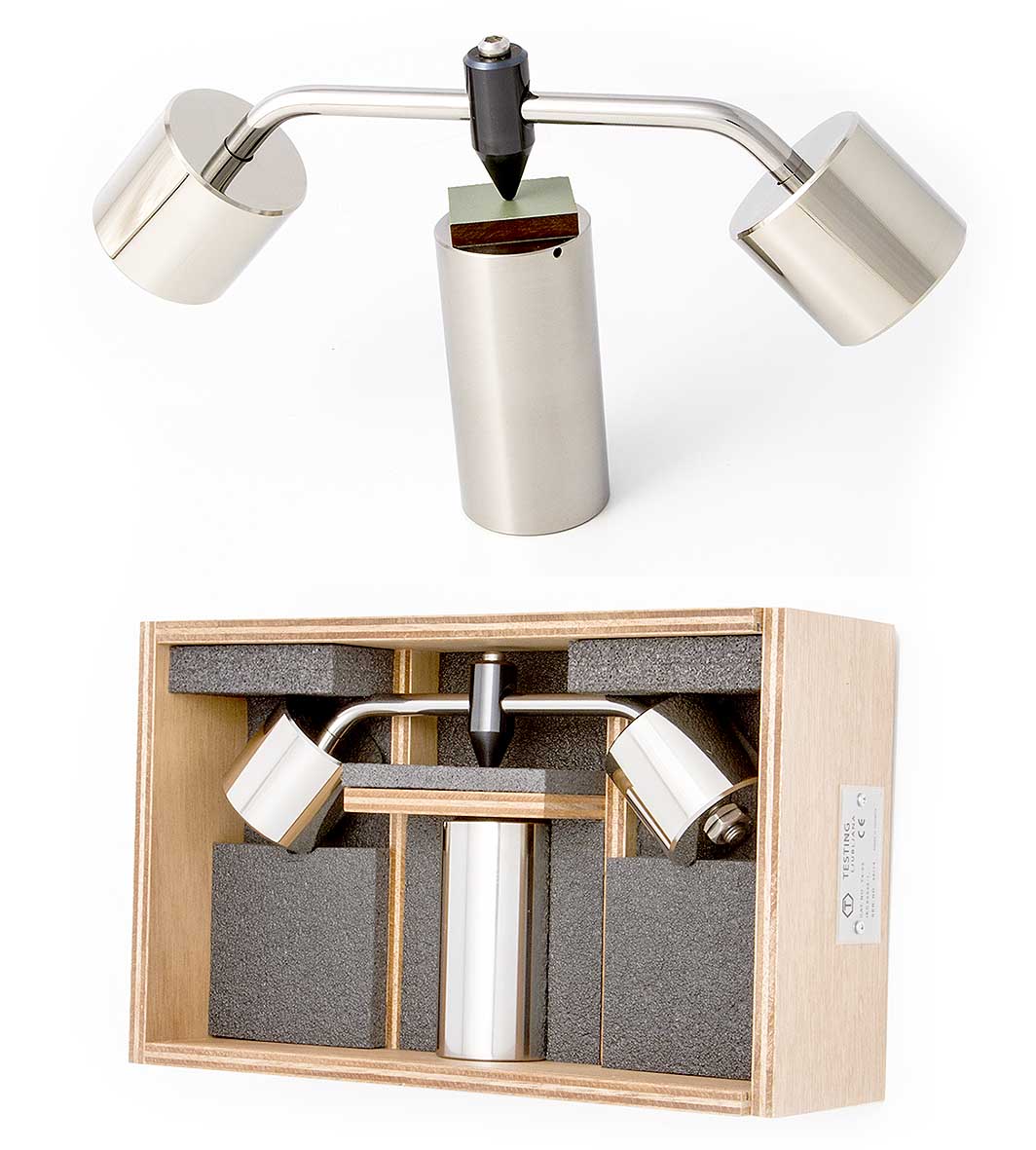

Ball pressure test Apparatus T4-03
Ball pressure test Apparatus T4-03
COMPLIANCE
T4‑03 BALL PRESSURE TEST APPARATUS is designed and manufactured in compliance with IEC 60695-10-2, 60335-1, 60950-1, 60884-1, 60320-1, 60598-1, 61010, 61032, 60439-5, IEC 60601-1, BS 1363-1, IRAM 2073, 4220-1 NM, BIS, UL 2601-1, CSA 60745, VDE, BSI, DIN, EN.
DESCRIPTION
T4-03 BALL PRESSURE TEST APPARATUS is intended for testing parts of non-metallic materials for resistance to heat. It is applicable to electrotechnical equipment, its subassemblies and components, and solid electrical insulating materials except for ceramics. It is a 5 mm hardened steel ball with weights that exert a force of 20 N on the surface of a tested sample. Suitable support for the tested sample is also enclosed. The test sample shall be positioned on the support, heated up in an oven and then loaded with a ball pressure test apparatus. After the required period, the sample is taken out of the chamber, immersed in cold water and then indentation is measured. In some cases this test is long, or multiple samples shall be checked, therefore in such cases, it is practical to test multiple samples at the same time – so more than one apparatus might be needed for parallel testing.
MAIN FEATURES
- Anodised aluminum support for better heat conductivity
- The ball part is made of special gauge steel
- Horizontal rod made of stainless steel
The ball part is engraved with catalog number and serial number, to enable its traceability and certification
DESIGN
BALL PRESSURE TEST APPARATUS made of different materials: the ball part is made of special gauge steel DIN 17006 - 90MnCrV8; AISI O2, W. Nr. 1.2842, This is high quality, high strength steel, with long term dimensional stability, resistance to cracking, high machinability, and great resistance to wear and can be hardened up to 65 HRC. A horizontal rod is made of stainless steel, weights are made of brass and are nickel plated, the support is made of anodized aluminum. T4-03 is packed in a wooden box with transparent cover (Plexiglas) and with inscription plate that indicates conformity with the standard. It is intended for use in a chamber so all materials are so selected that they can continuously withstand high temperatures.
TECHNICAL SPECIFICATION
Diameter | 5 mm |
Material | hardened steel |
Force exerted on the ball | 20 N ± 0.2 N |
The box is made of lacquered plywood | WxDxH: 320 x 180 x 90 mm |
CALIBRATION CERTIFICATES
Certificate for ball dimensions and the force exerted on the test sample are available on request but are not included in the price.
OTHER CONDITIONS
Warranty: 2 years
Support by E-mail: support@testing.si
On line Skype VIDEO Support: Testing_support, matejsimonic
We will be glad to help you and to hear any feedback from you.
The equipment described here is subject to redesign without notice. The change will not impair the function of apparatus its characteristics or the price.
