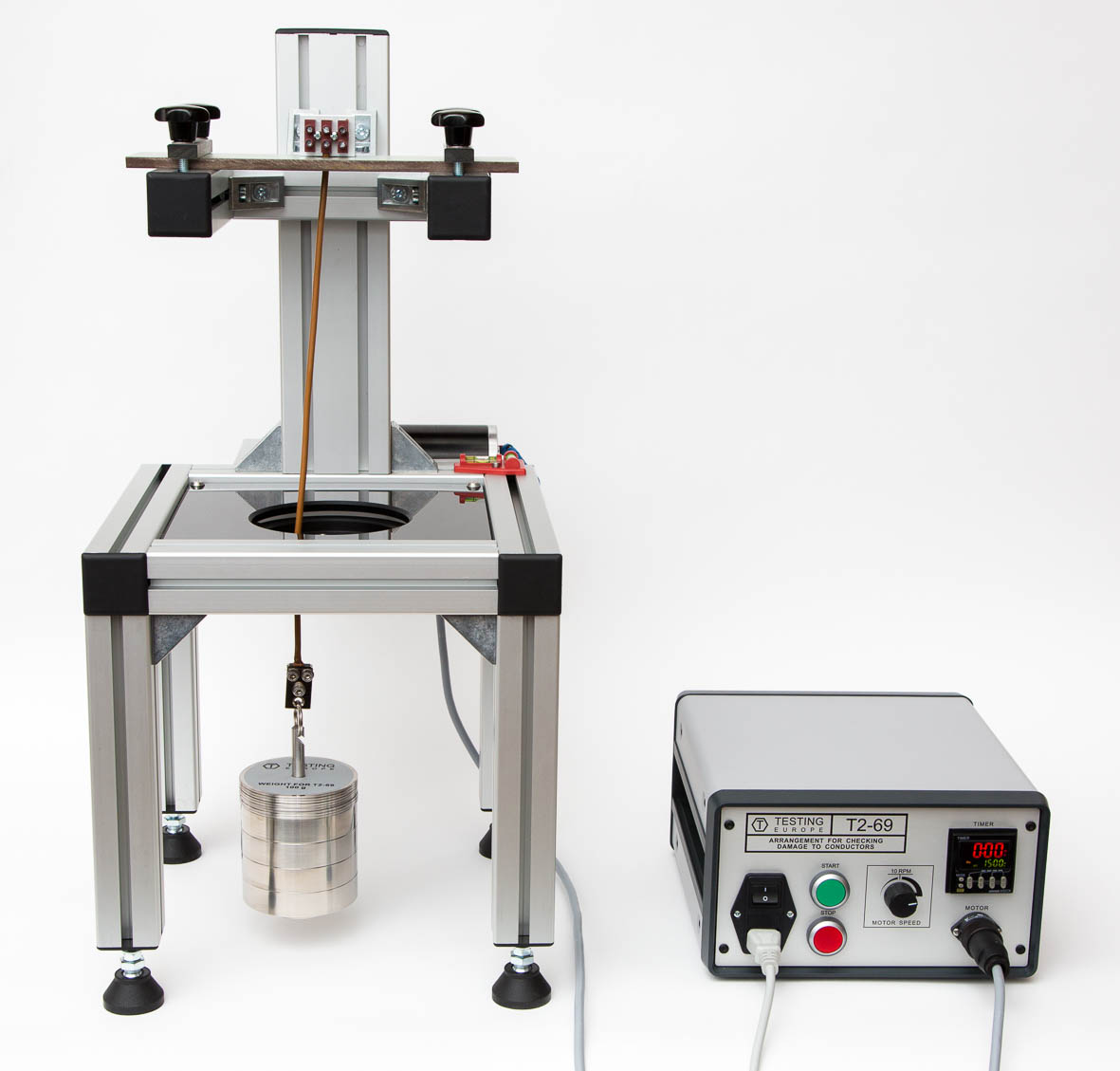

Arrang. for checking damage to conductors T2-69

pdfArrangement for checking the damage to conductors T2-69

Inquiry

T2-69

COMPLIANCE

T2-69, ARRANGEMENT FOR CHECKING DAMAGE TO CONDUCTORS is designed and manufactured in compliance with IEC 60884-1, § 12.3.10 and Fig. 11, IEC 60669-1 fig. 10

DESCRIPTION

T2-69 ARRANGEMENT FOR CHECKING DAMAGE TO CONDUCTORS is intended for testing terminals with screw clamping for damage to and accidental loosening of conductors.

MAIN FEATURES

ARRANGEMENT FOR CHECKING DAMAGE TO CONDUCTORS is free-standing apparatus and consists of an anodized solid sectional aluminum skeleton with sample fastener, protection plate, rotating plate and set of weights. Sample fastener enables sample mounting and positioning (height adjustment and position adjustment). Motor with reduction gear rotates the plate with a rate of 10 +/-2 RPM. The plate has three bushing holes with diameters 6,5, 9,5 and 13 mm as per table 9 of IEC 60884 1 and table 4 in IEC 60669-1. Weights are so designed that it is possible to assemble all masses prescribed in table 9 of IEC 60884-1 and table 4 in IEC 60669-1. The set of weights also includes the weight fastener by which the weights are mounted to the conductor.

It is equipped with a control unit for the motor that ensures constant rotation speed of the rotating plate.

DESIGN

Skeleton is made of anodized sectional aluminum profiles, all other parts are galvanically protected or are made of corrosion-free materials.

TECHNICAL SPECIFICATION

MECHANICAL UNIT DIMENSIONS:

            WIDTH                                                          333 mm

            DEPTH                                                         465 mm

            HEIGHT                                                       700 mm

CONTROL UNIT DIMENSIONS:

            WIDTH                                                          260 mm

            DEPTH                                                         270 mm

            HEIGHT                                                       150 mm



MAINS VOLTAGE                                                  110-240V, 50/60 Hz

POWER CONSUMPTION                                    100 VA



WEIGHT                                                                   23 kg

OTHER CONDITIONS

Warranty: 2 years

Support by E-mail: support@testing.si

On line Skype VIDEO Support: Testing_support, matejsimonic

We will be glad to help you and to hear any feedback from you.

The equipment described here is subject to redesign without notice. The change will not impair the function of apparatus its characteristics or the price.
